T-headed bars // types and dimensions

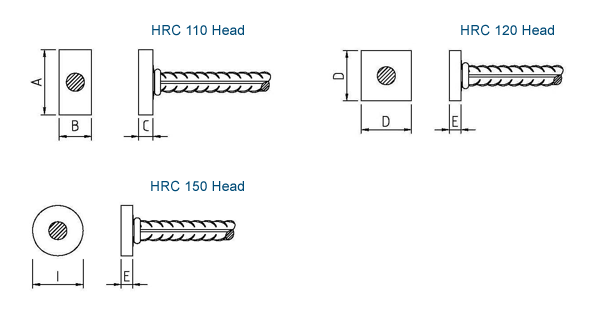

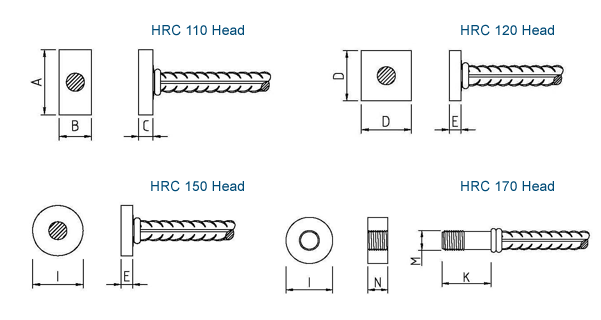

Nominal diameter of reinforcement bar	Head Dimensions
∅	A	B	C	D	E120	E150	I	K	M	N
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
16	35	60	16	50	12	12	50	70	M18	20
20	40	80	18	60	14	16	65	70	M24	25
25	50	100	20	70	16	20	80	75	M27	30
28, 32	65	120	25	90	20	25	100	100	M38	40
40	-	-	-	110	25	-	-	-	-	-

Nominal diameter of reinforcement bar	Head Dimensions
∅	F	G	H	I	J
mm	mm	mm	mm	mm	mm
16	60	30	12	50	12
20	72	40	14	60	14
25	90	45	18	70	16
28, 32	115	64	22	90	20
36, 40	Special Order

All products are designed to exceed the actual stress and strain capacity of the rebar.
Head dimensions for HRC 100 series are based on concrete compressive strength of 30MPa. Higher concrete strength results in more conservative design.
T-heads of HRC 200 series have improved resistance under fatigue loads.
Mechanical properties that fulfill the ductility requirements for reinforcement steel with a charasteristic yield strength of 500 MPa in accordance to EN 10080.

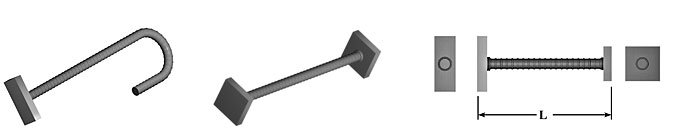

Can be combined with 180° hook or other HRC products:
